SOLARZERO EMISSIONS

The Solar Facility

The Future of Portable Buildings is Here

Power your operations anytime, anywhere with unparalleled efficiency. In collaboration with RedEarth, a pioneer in solar and battery technology, and supported by the Australian Government's AusIndustry Entrepreneurs Programme, the Solar Facility is your sustainable solution for off-grid, on-site operational efficiency.

Eco-FriendlyReliablePortableSilent Operation

(07) 4979 2333

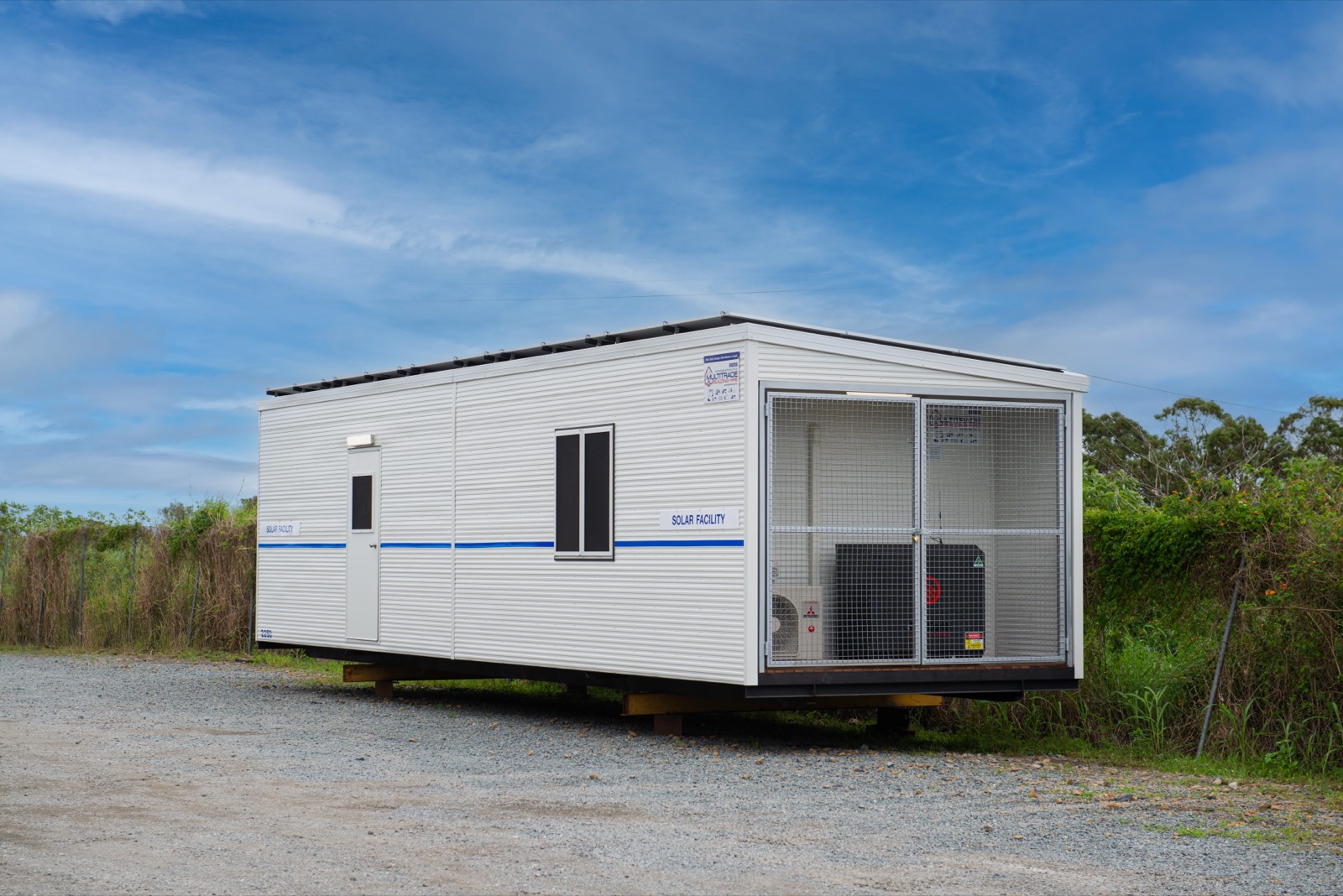

Multitrade Solar Facility — exterior view

ZERO DIESEL

Why Choose the Solar Facility?

Completely off-grid. Operate independently from traditional power sources such as generators and terminated site power.

Completely Off-Grid

No generators, no site power needed

Reduce Carbon Footprint

Aligns with sustainability goals

Cost Effective

Eliminates fuel, servicing & trade connections

Immediate Establishment

No sub-trades, no waiting

Key Features & Benefits

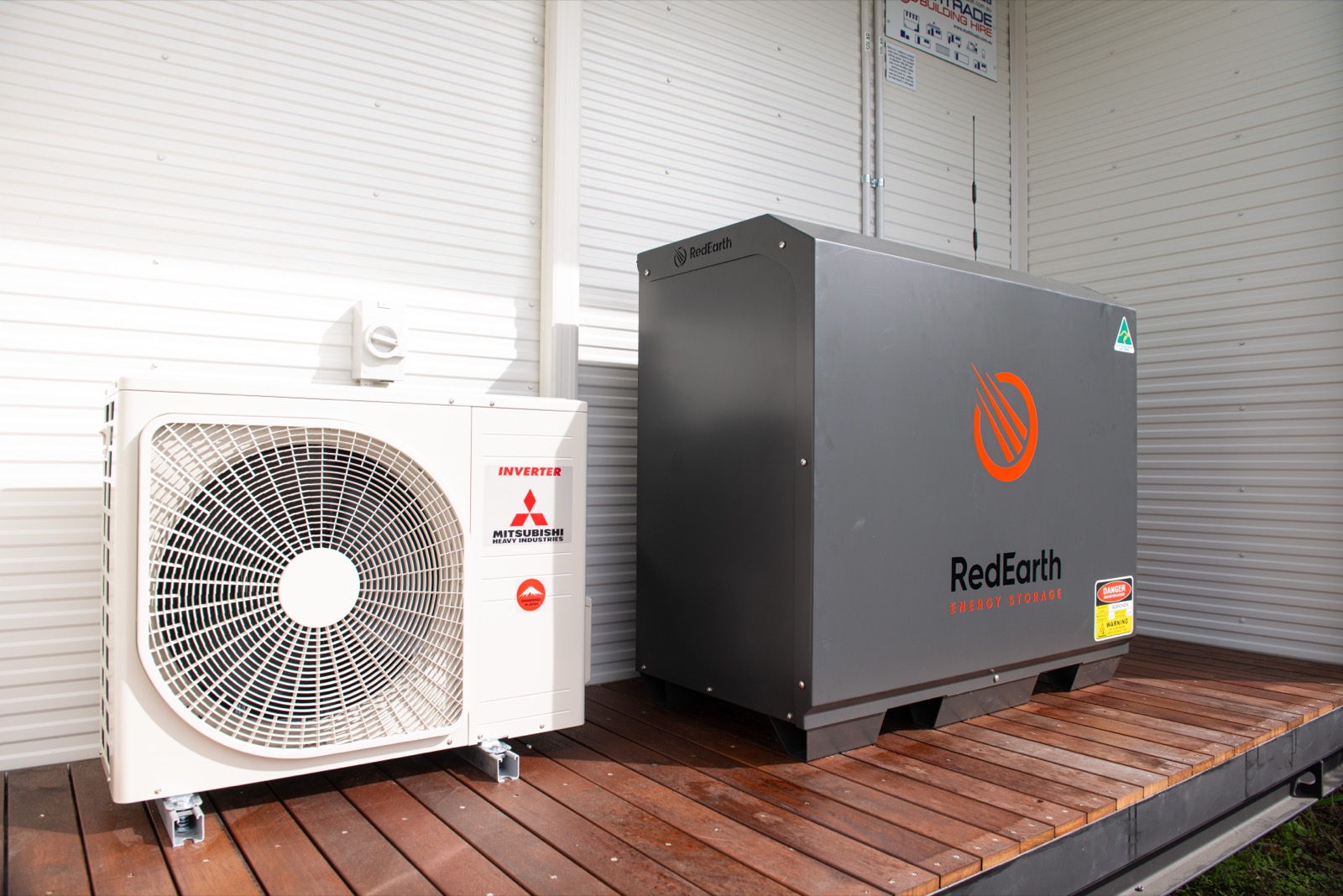

RedEarth 'Bush Chook' Off-Grid Power

Australian-made lithium phosphate battery system with 20.5kWh standard, expandable to 32.8kWh. Developed in collaboration with RedEarth, supported by the Australian Government's AusIndustry Entrepreneurs Programme.

High-Performance Solar Array

Up to 15 × Jinko 590W MPPT PV panels producing 8.85kW. Panels double as a tropical roof providing an air gap across the entire roof for additional insulation.

Zero Diesel, Zero Emissions

Completely eliminates diesel generators. No fuel deliveries, no oil changes, no generator servicing. Reduce your carbon footprint and meet ESG and sustainability targets.

Immediate Site Establishment

No downtime waiting for external services. No electrical or plumbing sub-trades needed — delivered and operational immediately. Just place and power up.

Remote Monitoring

Monitor battery levels, solar input, and power consumption remotely via Red Earth's EMU app on computer and mobile dashboards.

Versatile & Customisable

Open plan layout suits office setups or crib room configurations. The wider 3.35m width provides more ergonomic flow and space than standard 3.0m buildings.

Comfortable & Quiet

R2.0 wall batts, R1.8 ceiling batts, and R2.3 roof blanket insulation. All windows fitted with blackout blinds and Crimsafe security screens. Silent operation — no generator noise.

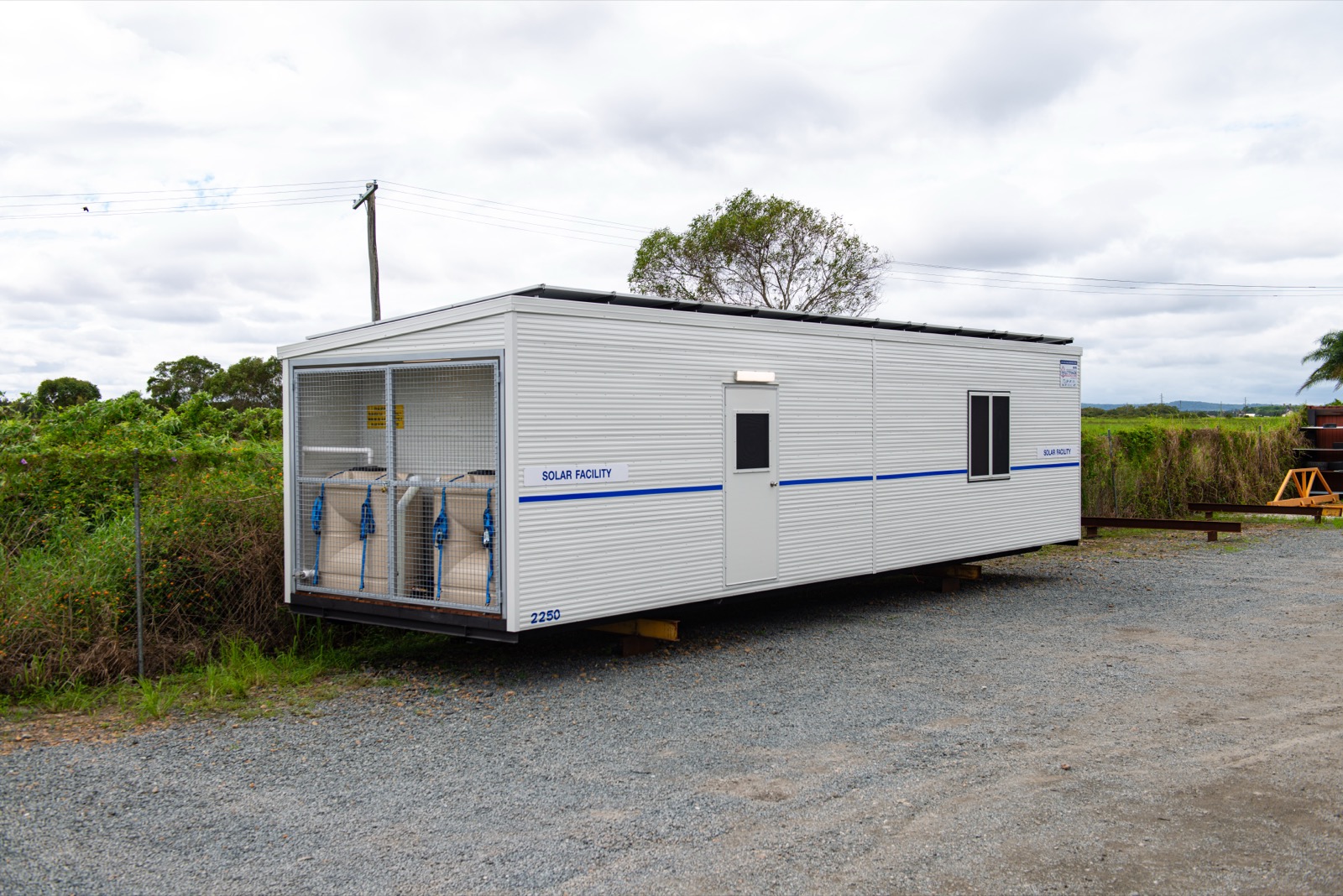

Self-Contained Water System

650L potable water tank and 650L grey water tank with WaterPro pressure pump and filter. 50mm cam lock fill point for easy refilling.

Specifications

Solar & Power System

Solar Panels15 × Jinko 590W panels

Solar Output8.85kW PV

Battery (Standard)5 × 4.1kWh Troppo Batteries = 20.5kWh

Battery (Max)8 × 4.1kWh = 32.8kWh

Power Output8,000W continuous (Max 16,000W, 10S)

Battery Voltage48–57.6V

MonitoringRedEarth EMU app (computer & mobile)

Building Specifications

Dimensions1200cm × 335cm

Air Conditioning1 × 5.0kW Mitsubishi Heavy Industries Reverse Cycle Split System

Door1 × 2040×920mm External Metal Clad Door, Crimsafe Security Screen, Door Closer

Windows3 × 1200×1200mm Sliding Glass Windows, Crimsafe Mesh, Internal Roller Blinds

Kitchenette2300mm Bench Top with single bowl sink, 3190mm overhead cupboards, 1400mm bench with overhead storage

Water System650L potable water tank + 650L grey water tank, pressure pump & filter

Power Points10 × Double GPO + 2 × Single GPO

LED Lighting3 × 1200mm internal + 1 × 600mm internal, 3 × 600mm external

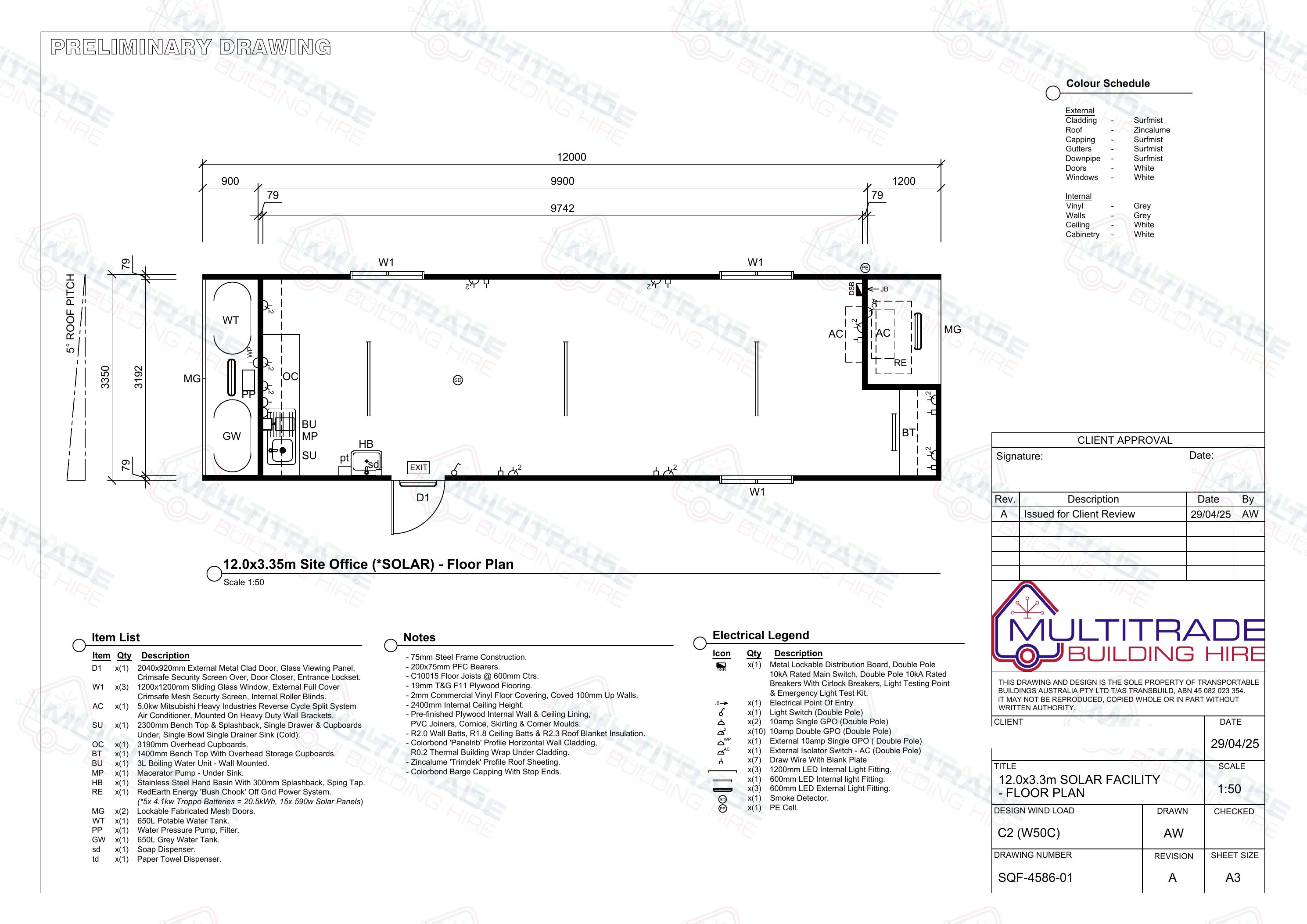

Floor Plan

Preliminary drawing — final specs may vary

Cost Comparison vs Diesel

Fuel costs$800–1,500/mo$0

Servicing$200–500/moMinimal

Noise75+ dB0 dB

EmissionsHigh CO₂Zero

Fuel deliveriesWeeklyNone

Site establishmentSub-trades requiredImmediate

* Diesel costs are indicative estimates based on typical remote site operations.

Construction

75mm Steel Frame Construction

200×75mm PFC Bearers

C10015 Floor Joists @ 600mm Centres

19mm T&G F11 Plywood Flooring

2mm Commercial Vinyl Floor Covering, Coved 100mm Up Walls

2400mm Internal Ceiling Height

Pre-finished Plywood Internal Wall & Ceiling Lining

R2.0 Wall Batts, R1.8 Ceiling Batts & R2.3 Roof Blanket Insulation

Colorbond 'Panelrib' Profile Horizontal Wall Cladding

Zincalume 'Trimdek' Profile Roof Sheeting

Colorbond Barge Capping With Stop Ends

Standard Inclusions

1 × 2040×920mm External Metal Clad Door with Crimsafe

3 × 1200×1200mm Sliding Glass Windows with Crimsafe

1 × 5.0kW Inverter Reverse Cycle Split System AC

1 × 2300mm Bench Top & Splashback with Cupboards

1 × 3190mm Overhead Cupboards

1 × 1400mm Bench Top with Overhead Storage

1 × 3L Boiling Water Unit — Wall Mounted

1 × Macerator Pump — Under Sink

1 × Stainless Steel Hand Basin with Soap/Towel Dispenser

1 × RedEarth 'Bush Chook' Off-Grid Power System

15 × Jinko 590W Solar Panels (8.85kW PV)

2 × Lockable Double Mesh Gates

1 × 650L Potable Water Slimline Tank

1 × 650L Grey Water Slimline Tank

1 × Water Pressure Pump & Filter

1 × Smoke Detector

LED Internal & External Lighting Throughout
